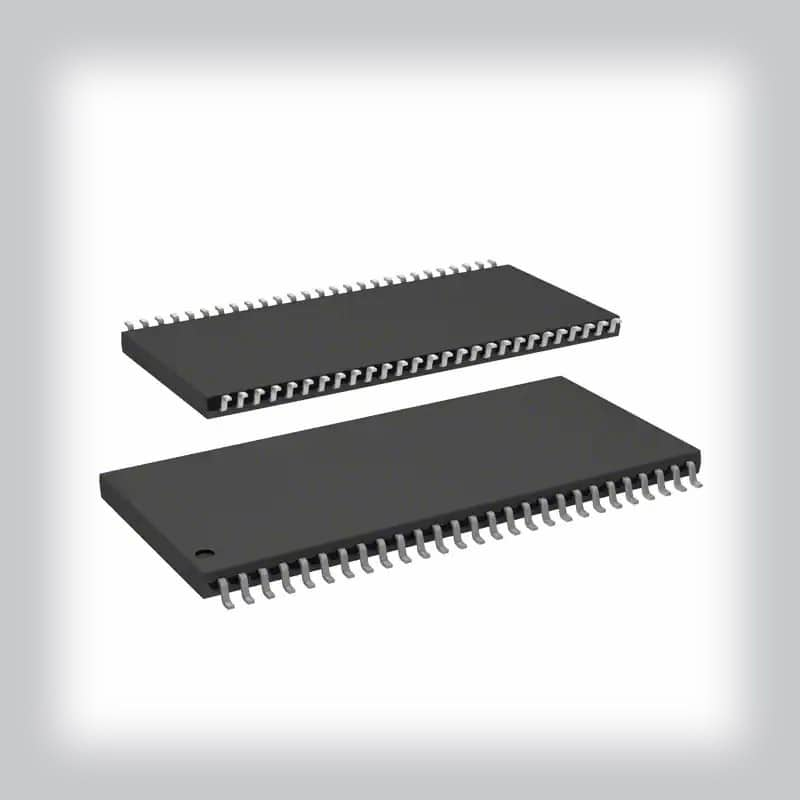

IC IS42S16400J-7TL

FEATURES of IC IS42S16400J-7TL
• Clock frequency: 200, 166, 143, 133 MHz
• Fully synchronous; all signals referenced to a
positive clock edge
• Internal bank for hiding row access/precharge
• Single 3.3V power supply
• LVTTL interface
• Programmable burst length – (1, 2, 4, 8, full page)
• Programmable burst sequence : Sequential/Interleave
• Self refresh modes
• Auto refresh (CBR)
• 4096 refresh cycles every 64 ms (Com, Ind, A1 grade) or 16ms (A2 grade)
• Random column address every clock cycle
• Programmable CAS latency (2, 3 clocks)
• Burst read/write and burst read/single write operations capability
• Burst termination by burst stop and precharge command
OPTIONS in IC IS42S16400J-7TL
• Package:
54-pin TSOP II
54-ball TF-BGA (8mm x 8mm)
60-ball TF-BGA (10.1mm x 6.4mm)
• Operating Temperature Range
Commercial (0o C to +70o C)
Industrial (-40o C to +85o C)
Automotive Grade A1 (-40o C to +85o C)
Automotive Grade A2 (-40o C to +105o C)
